SINGLE PHASE OFF-GRID INVERTER

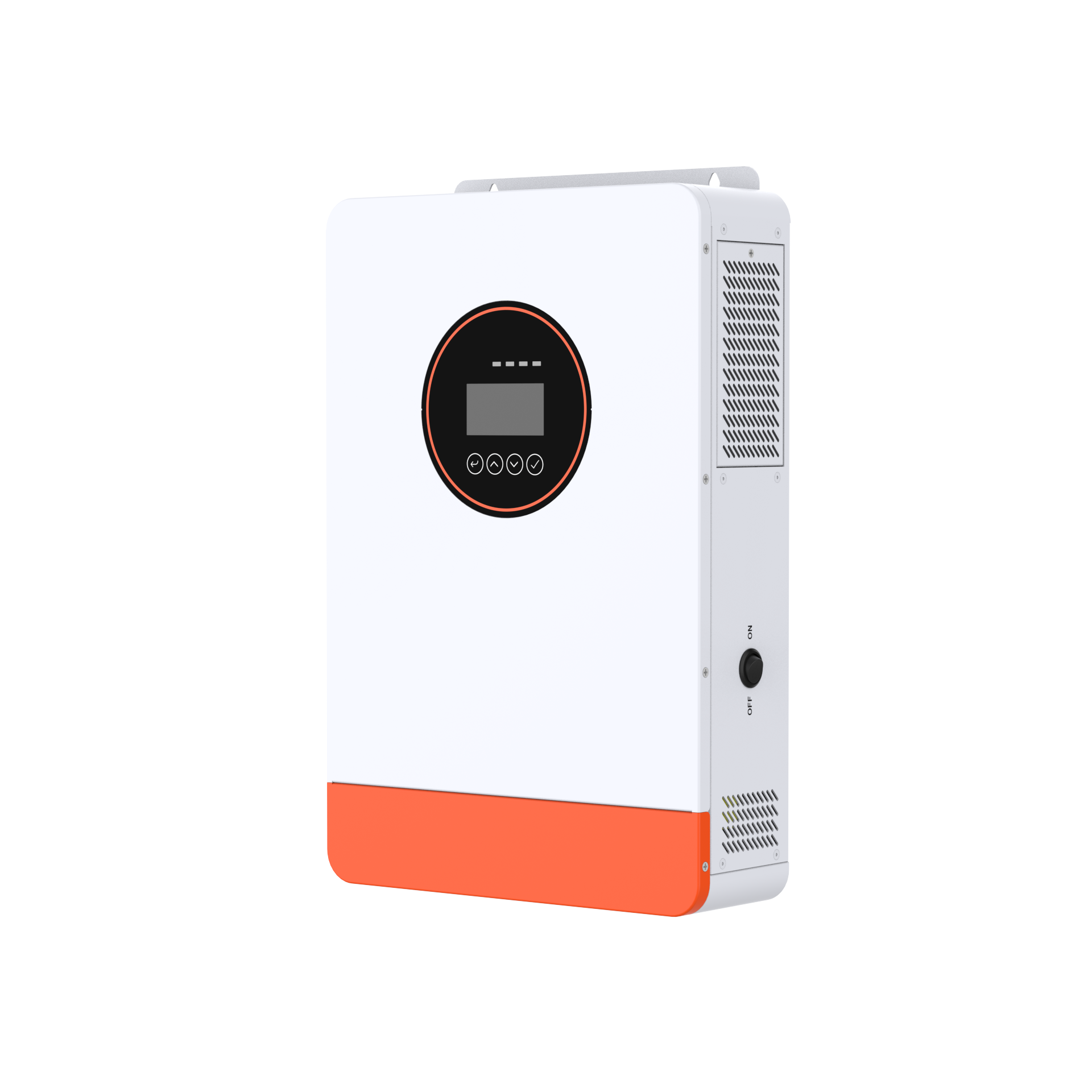

| Model | HS-PV5000-24 |
| ACInput |
| Rated Input Voltage (VAC) | 208/220/230/240; L+N+PE |
| Voltage Range (VAC) | 90~280 +3 (normal mode); 170~280+3 (UPS mode) |
| Frequency (Hz) | 50/60 (Auto Adaptive) |
| ACOutput |
| Rated Capacity (kW) | 4.2 |
| Surge Power (kVA) | 5.7 |
| Voltage (VAC) | 208/220/230/240 |
| Power Factor (PF) | 1 |
| Frequency | 50/60Hz +0.1% |
| Switch Time (ms) | 10 (normal mode)/10 (UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity (Batter Mode) | 60s@102%~110% load; 10s@110%~130% load; 3s@130%~150% load;0.2s@>150% load |
| Max. Efciency (Batter Mode) | 92.7%@24VDC |
| Parallel Quantity | NA |
| Charger (PV/AC) |
| Solar Charger Type | MPPT |
| Max PV input Current /Input Power | 18A/5000W |
| MPPT Range@Operating Voltage (VDC) | 40~450 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 100 |
| Max AC Charge Current (A) | 100 |
| Max. Charge Current (PV + AC)(A) | 100 |
| Battery |
| Rated Voltage (V) | 24 |
| Floating Charge Voltage (VDC) | 27 |
| Overcharge Protection (VDC) | 30.5 |
| Battery Type | Lithium and Lead-acid |
| Interface |
| HMI | LCD |
| Monitoring | WiFi(Optional) |
| General Data |
| Ingress Protection | IP20 |
| Operating Temperature | -10 ℃~ 50 ℃ |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15 ℃~ 60 ℃ |
| Net Weight (kg) | 8 |
| Dimensions (W*H*D) | 490*306*115mm (without bracket) |
| Max. Operating Altitude | 4000m (Derating above 1000m) |
